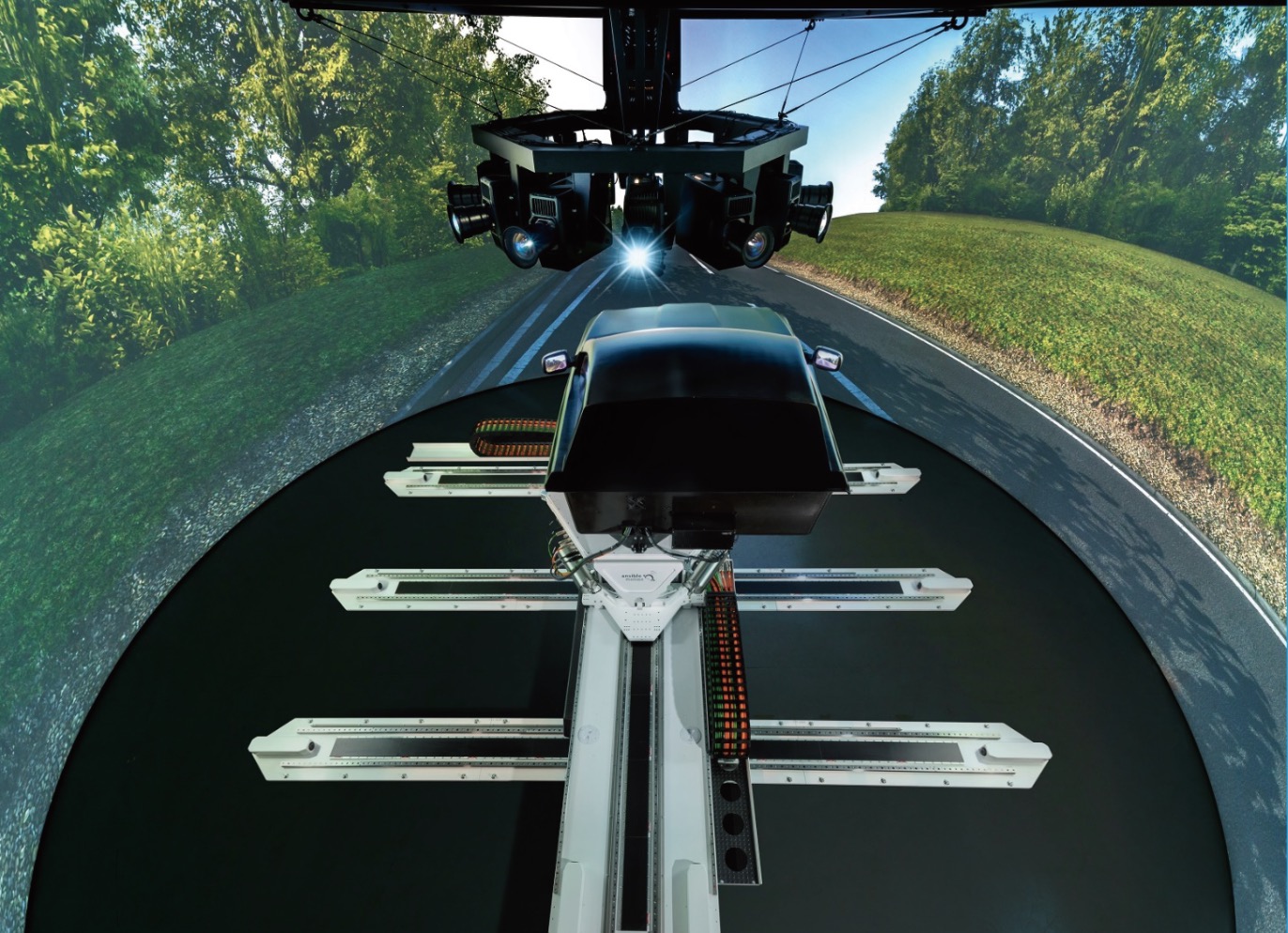

New generation motion base – Ansible Motion S3

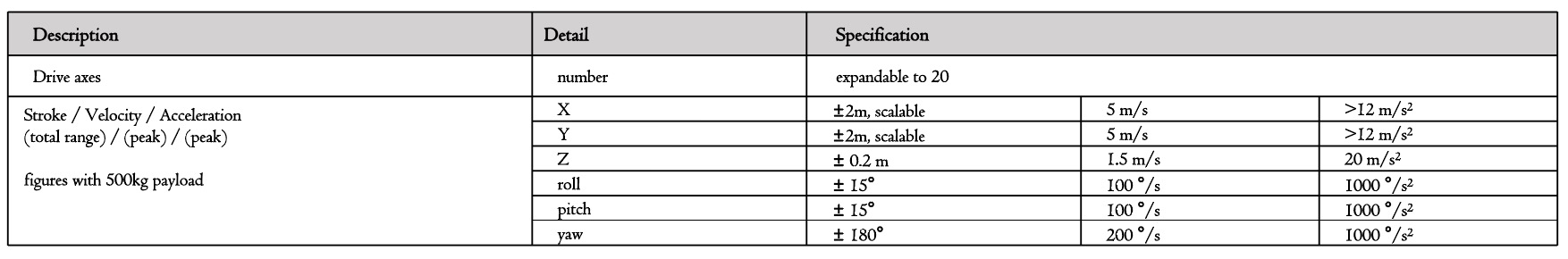

• able to generate high-fidelity large range motion while keeping high-dynamic response

• scalable surge and sway, and exceptional yaw ability for wider range of use cases

• increased motion and even better frequency response, to meet customer requirements for different types of driving

• in manufacture, first deliveries in 2021

Surge and Sway

Long travel available – 4m standard, longer as special order

High velocity – up to 5m/s in the ground plane, allowing sustained accelerations

Direct drive – linear motors for optimal frequency response

Accelerations are sustainable throughout the motion space - not compromised by position or velocity

Yaw

+/-180° of motion gives more realistic feel for high yaw rates

1:1 yaw motion possible for many scenarios

direct drive – motor-gearbox acts directly on turntable

integrated cable management – cable chain routed through mechanism for high speed running

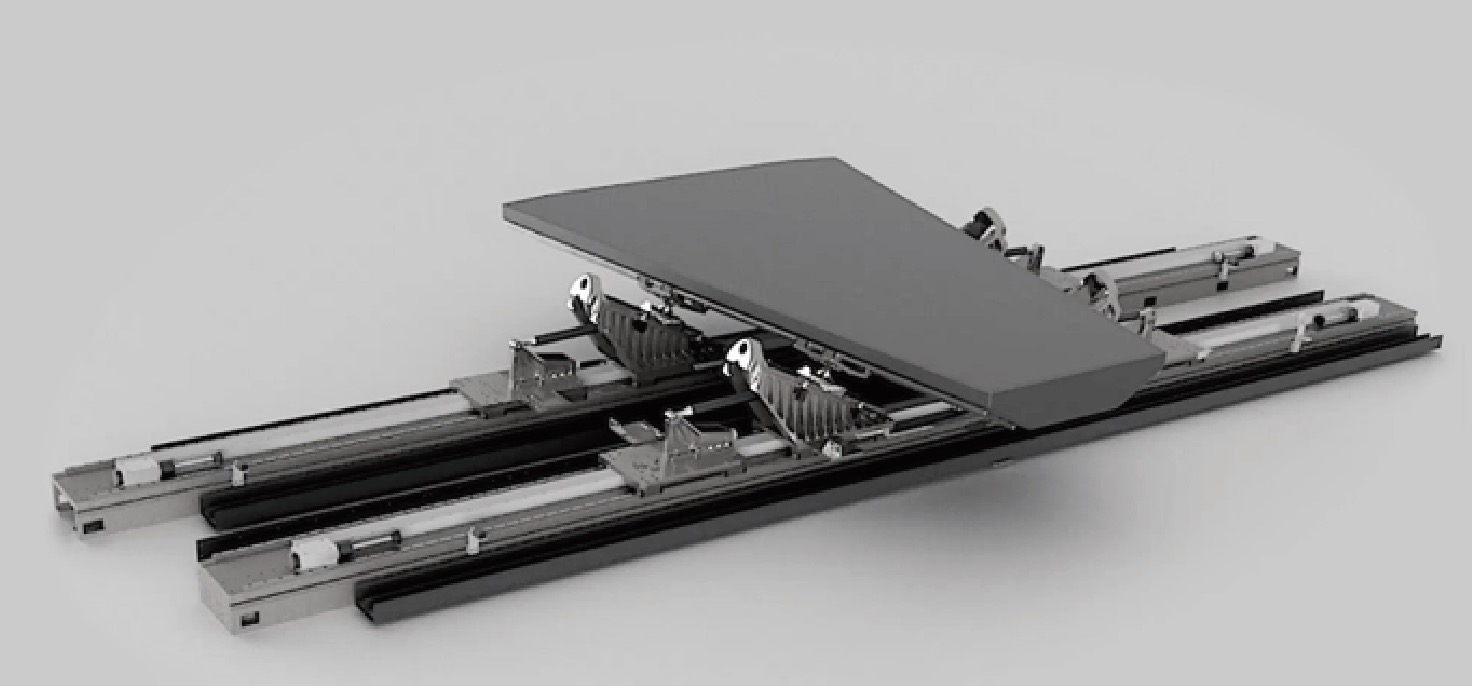

Heave, Pitch and Roll

Efficient kinematics – 3 degrees of constraint and 3 degrees of freedom using 3 motion axes

Optimised design – fewer parts than our previous motion bases, but higher performance and higher stiffness

Direct action – minimum number of compliant elements in drive path for improved frequency response

Accelerations are sustainable throughout the motion space - not compromised by position or velocity

• long travel available – 4m standard, longer as special order

• high velocity – up to 5m/s in the ground plane, allowing sustained accelerations

• direct drive – linear motors for optimal frequency response

• accelerations are sustainable throughout the motion space - not compromised by position or velocity

• +/-180° of motion gives more realistic feel for high yaw rates

• 1:1 yaw motion possible for many scenarios

• direct drive – motor-gearbox acts directly on turntable

• integrated cable management – cable chain routed through mechanism for high speed running

• efficient kinematics – 3 degrees of constraint and 3 degrees of freedom using 3 motion axes (patent applied for)

• optimised design – fewer parts than our previous motion bases, but higher performance and higher stiffness

• direct action – minimum number of compliant elements in drive path for improved frequency response

• accelerations are sustainable throughout the motion space - not compromised by position or velocity

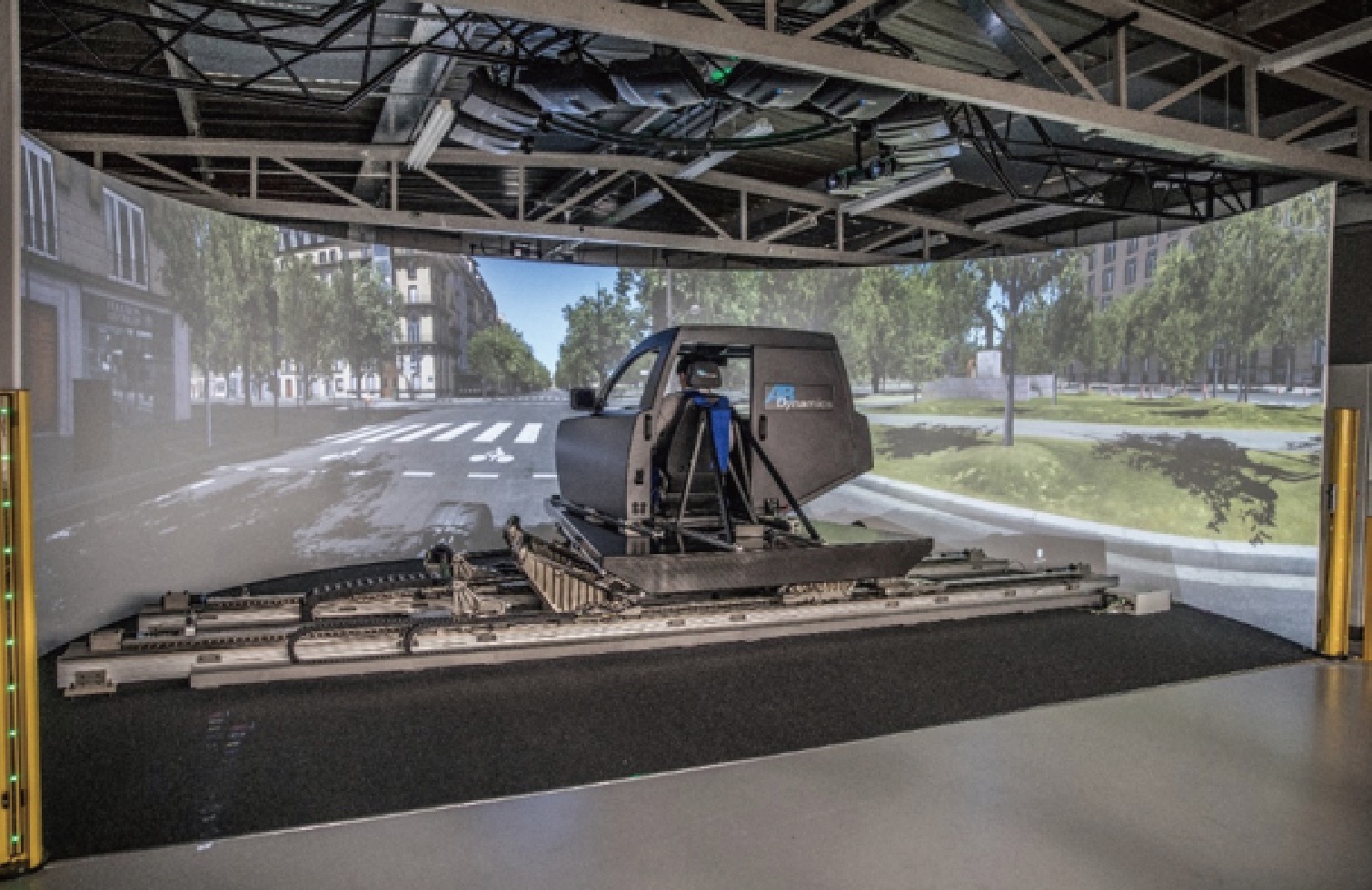

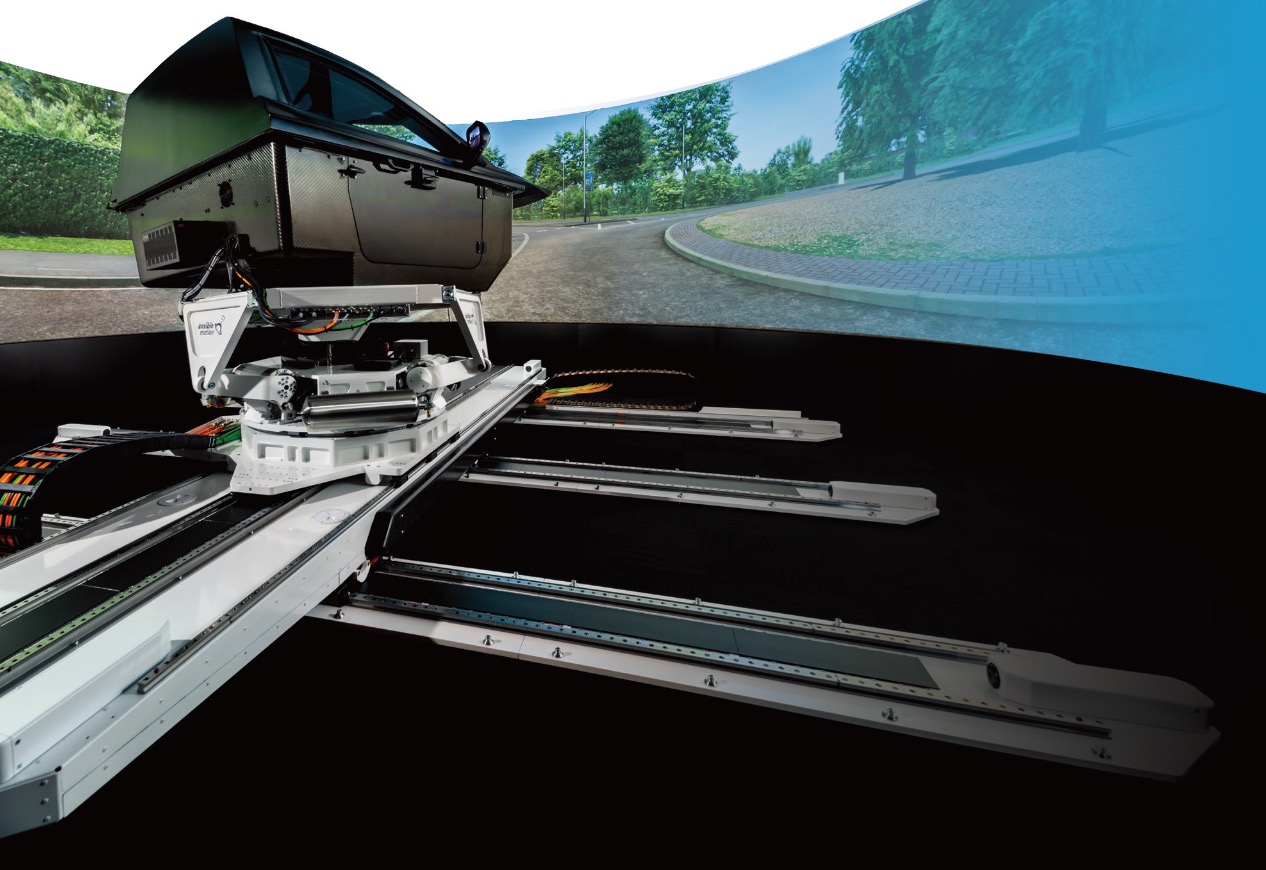

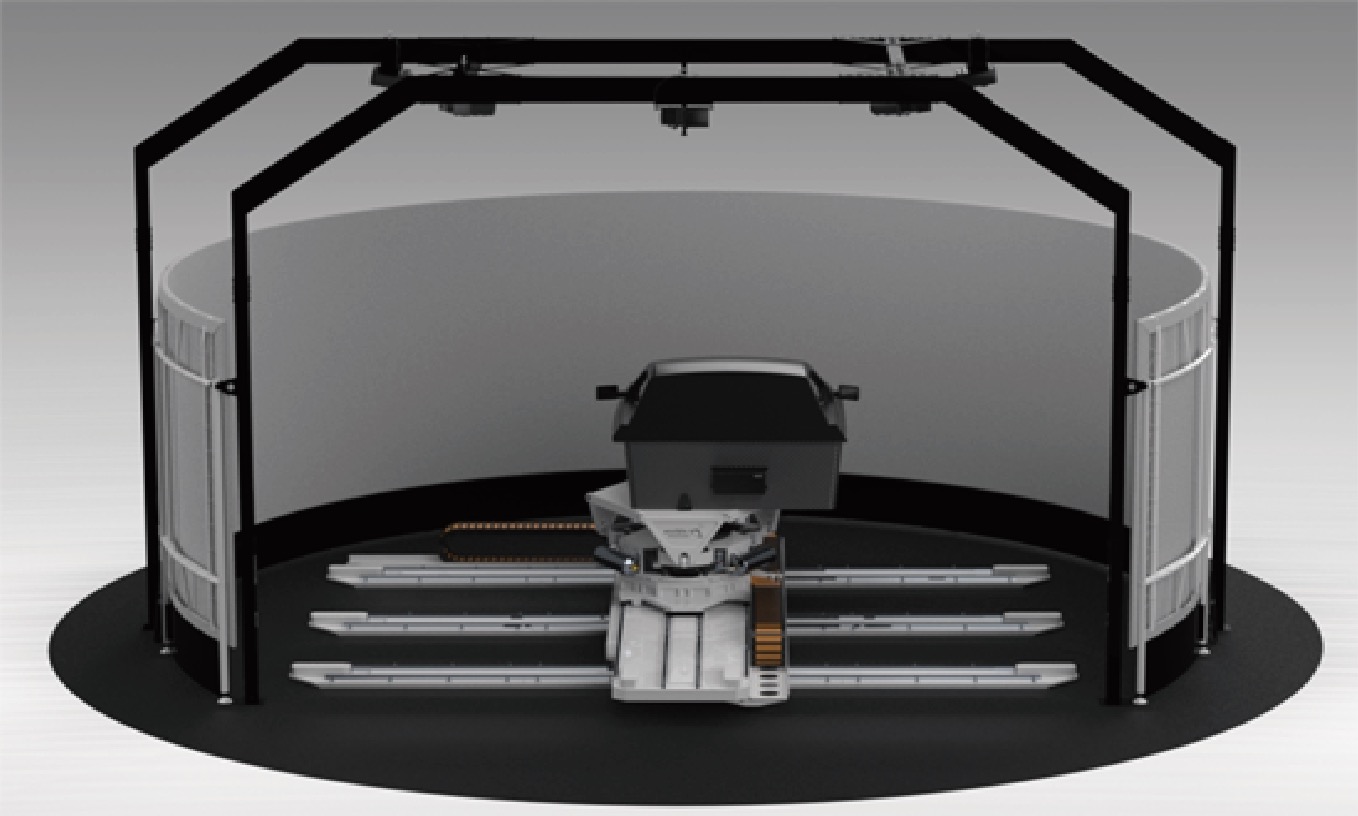

Delta S3 DIL examples
