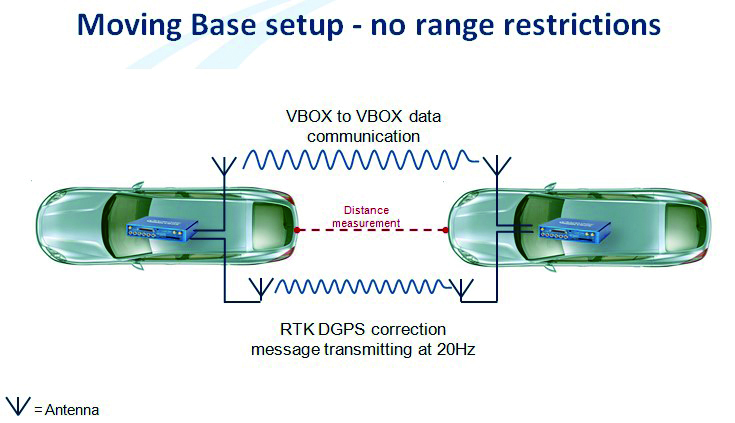

The VBOX system provides an easy and precise way to test and validate advanced driver assistance systems. With real-time measurement of parameters for up to three vehicles and a positioning accuracy of less than 2cm, the RACELOGIC VBOX ADAS test system enables developers to easily verify the effectiveness of their products. At the heart of the system is the RLVB4 ADAS, connected via radio telemetry to an RTK base station, or used on another RLVB4 ADAS as a mobile base station. The VBOX ADAS test system is suitable for testing and validating recognized industry and international standards such as ISO, NHTSA, NCAP testing.Any recorded channel: start, end, average, min, max.

Test applications:

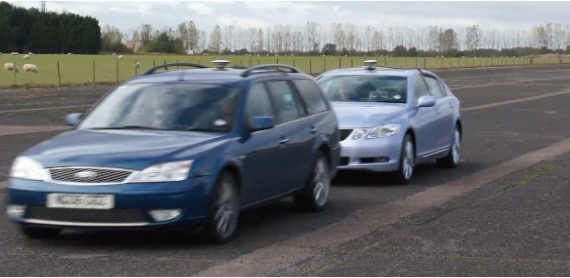

ACC（Adaptive Cruise Control）

AEB（Autonomous Emergency Braking）

FCW（Forward Collision Warning)

LDW（Lane Departure Warning）

LKA（Lane Keep Assist）

BSD（Blind Spot Detection）

RCTA（Rear Cross Traffic Assist）

TSR（Traffic SignRecognition）

APA（Auto Parking Assist）

Automatic Main Beam Control

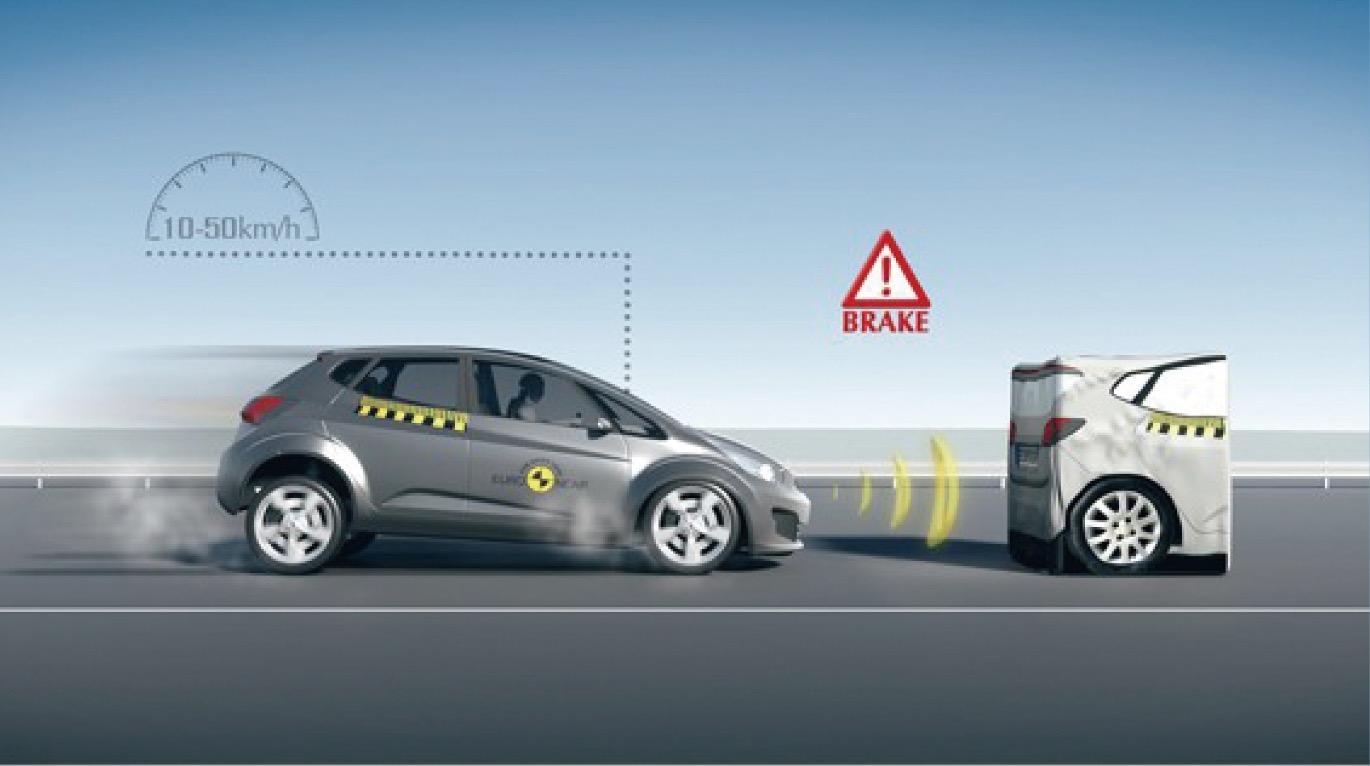

Automatic emergency braking and collision buffering

VBOX calculates vehicle separation parameters in real time, and the VBOX 3i RTK can be used in conjunction with Euro NCAP-validated inflatable target vehicles, steering and braking robots to comply with the requirements in the NACP evaluation system.

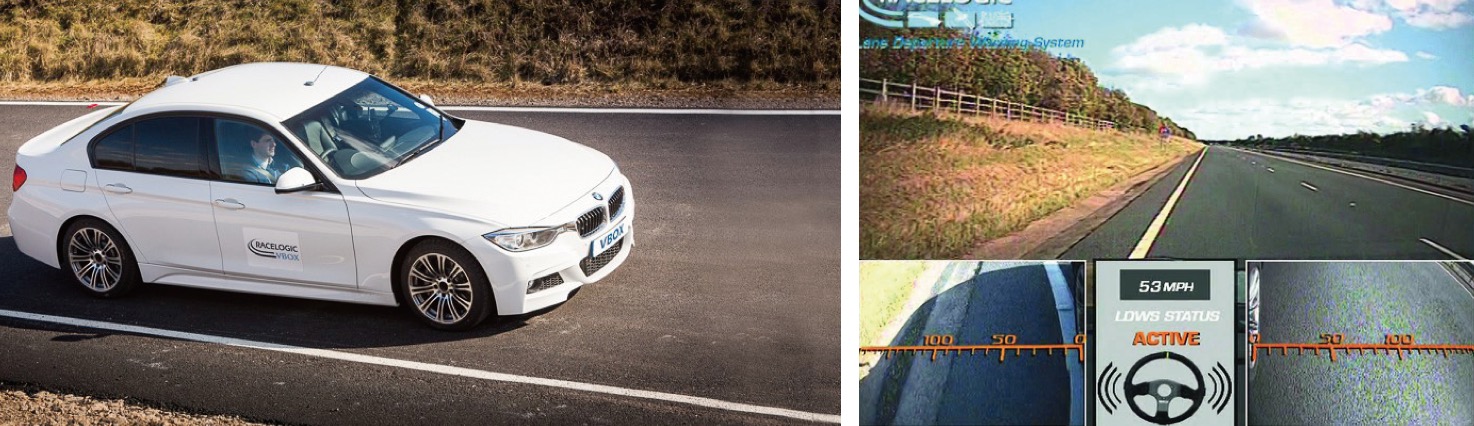

Lane Departure Warning and Lane Keep Assist

The VBOX Lane Departure Test Package allows you to test according to ISO 17361 and NHTSA NCAP. The system can simultaneously measure the real-time vertical distance of up to four contact points on the vehicle from the lane line, with an accuracy of 2CM. The edge of the reference lane can be straight or curved. RACELOGIC also offers dedicated LDWS test software that can generate field results in accordance with NHTSA NCAP or reduce road test time by configuring test constraints. Adding VIDEO VBOX can add video evidence to test data, and VIDEO VBOX can also be used alone as a simple test scale.

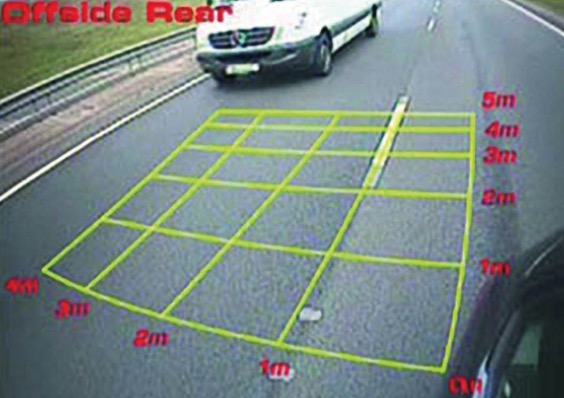

Blind spot detection

Measured parameters can be graphically overlaid onto video recorded from VIDEO VBOX or VBOX HD, providing a clear visual reference. Multiple contact points can be set to make the host vehicle approach the target vehicle from different directions, but there is no need to reset new contact points.

Lane Departure Warning and Lane Keep Assist

The VBOX Lane Departure Test Package allows you to test according to ISO 17361 and NHTSA NCAP. The system can simultaneously measure the real-time vertical distance of up to four contact points on the vehicle from the lane line, with an accuracy of 2CM. The edge of the reference lane can be straight or curved. RACELOGIC also offers dedicated LDWS test software that can generate field results in accordance with NHTSA NCAP or reduce road test time by configuring test constraints. Adding VIDEO VBOX can add video evidence to test data, and VIDEO VBOX can also be used alone as a simple test scale.

Open Road Testing

Support NTRIP differential correction for Open Road testing.
