Vbox Test Suite software is Racelogic's latest generation of data processing software, written based on C++ language, with a more user-friendly interface, making testing and generating reports more convenient and faster.

It contains the following test plugins:

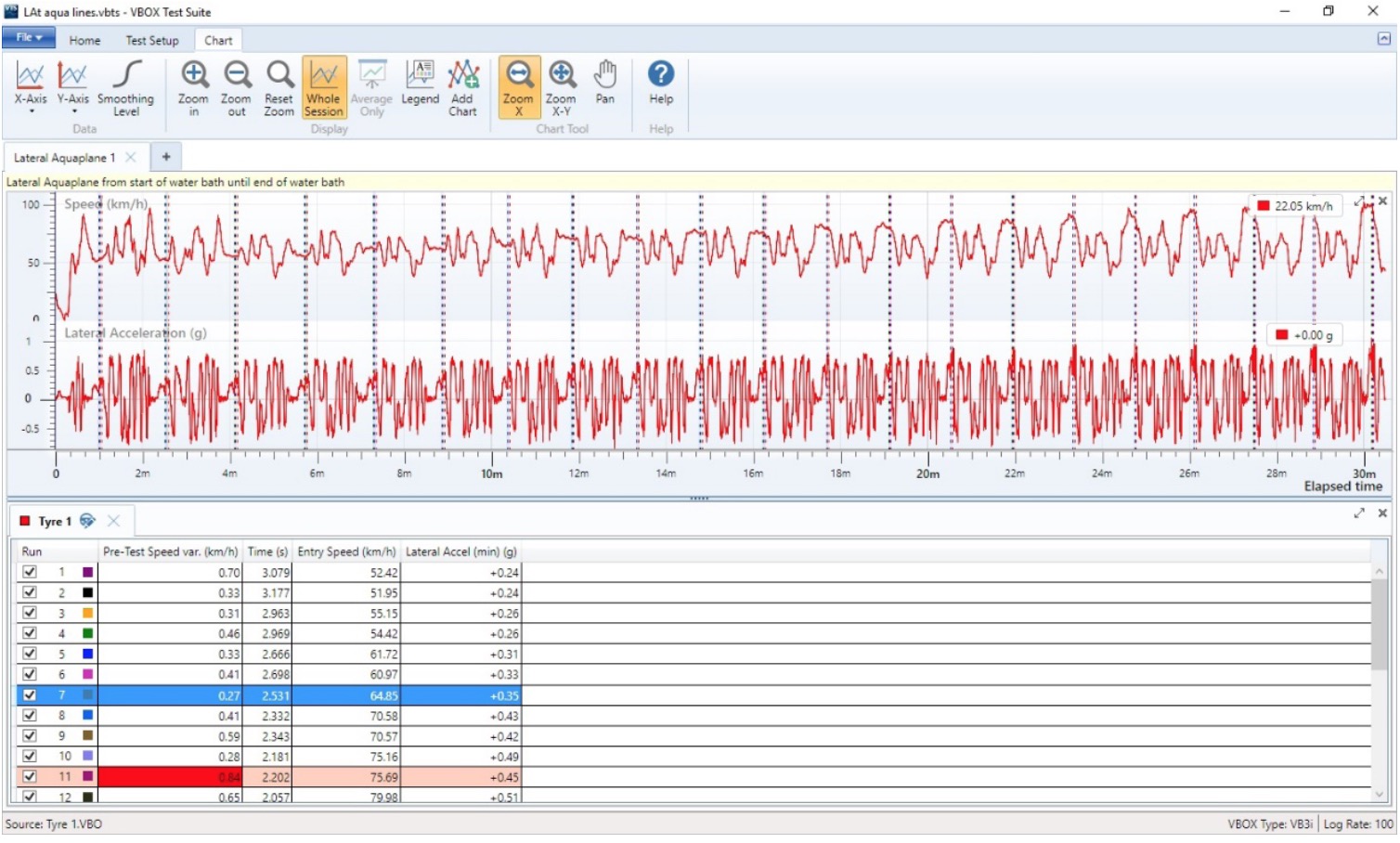

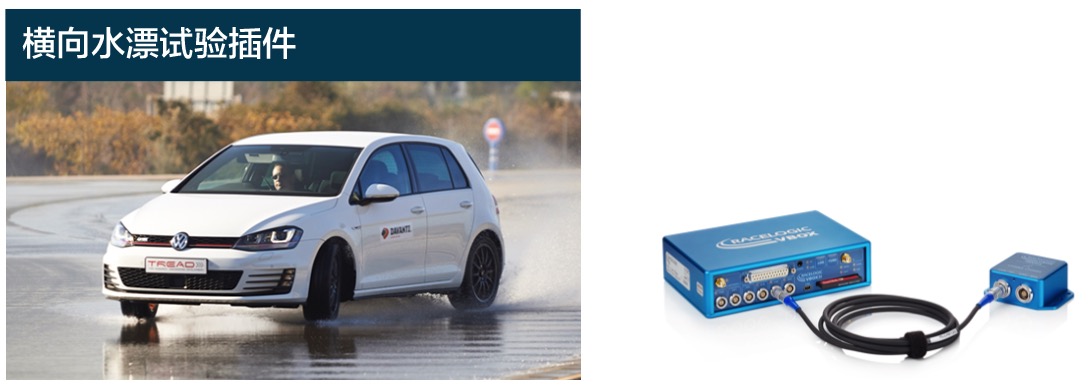

Water drift test (horizontal/vertical)

Data provided:

1. Criteria for passing and failing when predicting entry:

·Steering wheel angle

· Yaw rate

·Any user-defined channel

2. The minimum lateral acceleration through the water bath.

Data provided:

1. Speed;

2. Distance;

3. Wheel sideslip angle (from vehicle CAN or external sensor);

4. Automatically calibrate wheel speed through GPS.

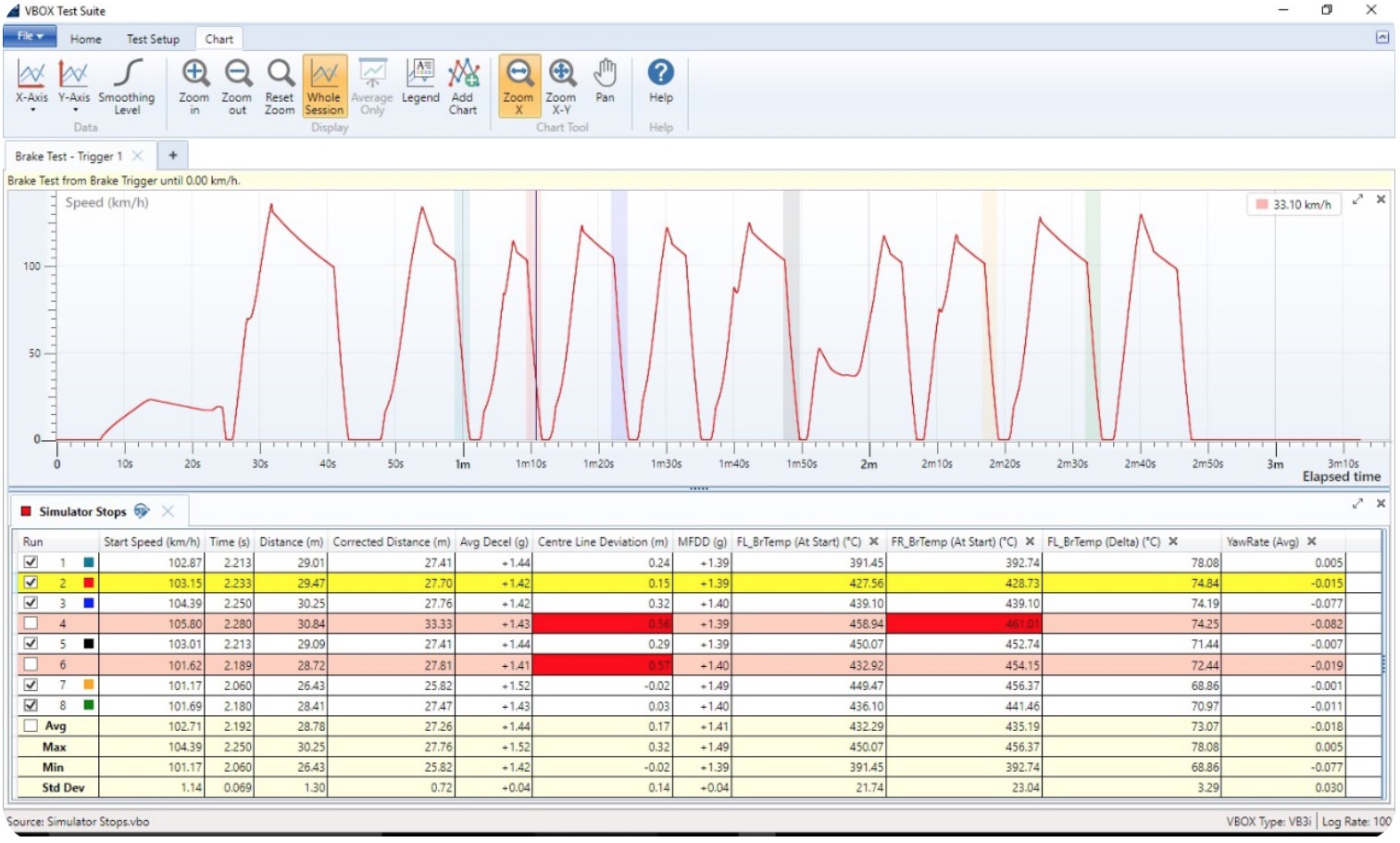

Brake Test

Data provided:

1. Braking time;

2. Braking distance;

3. Average deceleration;

4. MFDD;

5. Centerline offset;

6. Automatic wheel slip calibration & calculation;

7. Based on the following pass/fail criteria:

  · Any user-defined channel

  · The time interval between the two tests

  . The distance between the two tests

  . Temperature at the start of braking

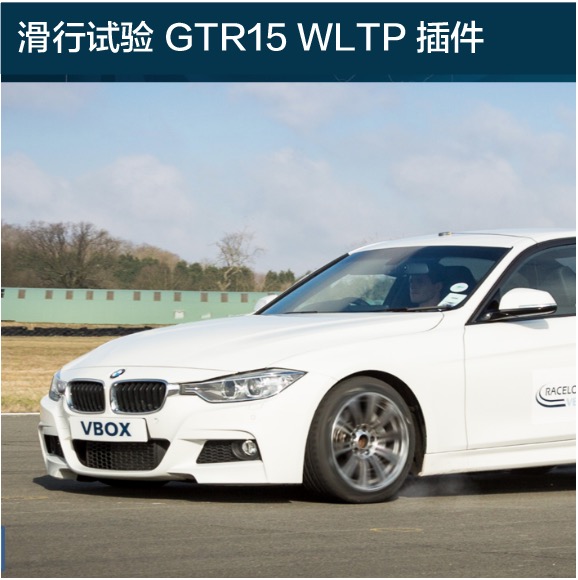

Coasting test

Data provided:

1. Speed;

2. Distance;

3. Time;

4. Average time;

5. Provide real-time accurate data according to the latest GTR 15 WLTP test steps.

Data provided:

1. Speed;

2. Distance;

3. Force;

4. Wind speed;

5. Temperature;

6. Mechanical and aerodynamic coefficients;

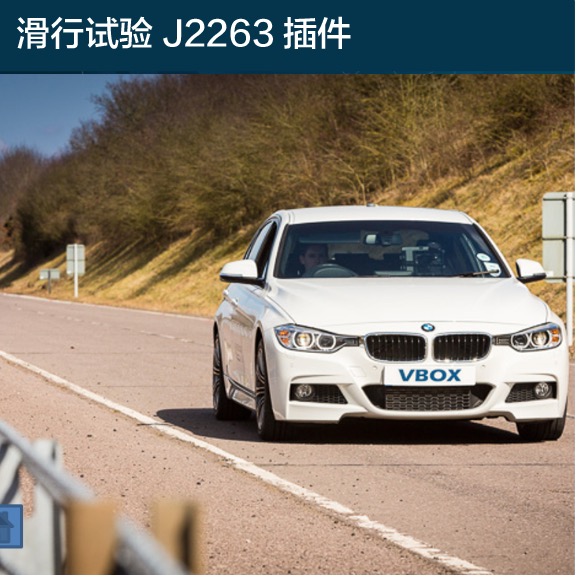

7. The road load curve uses the equation of motion specified in the J2263 regulations.

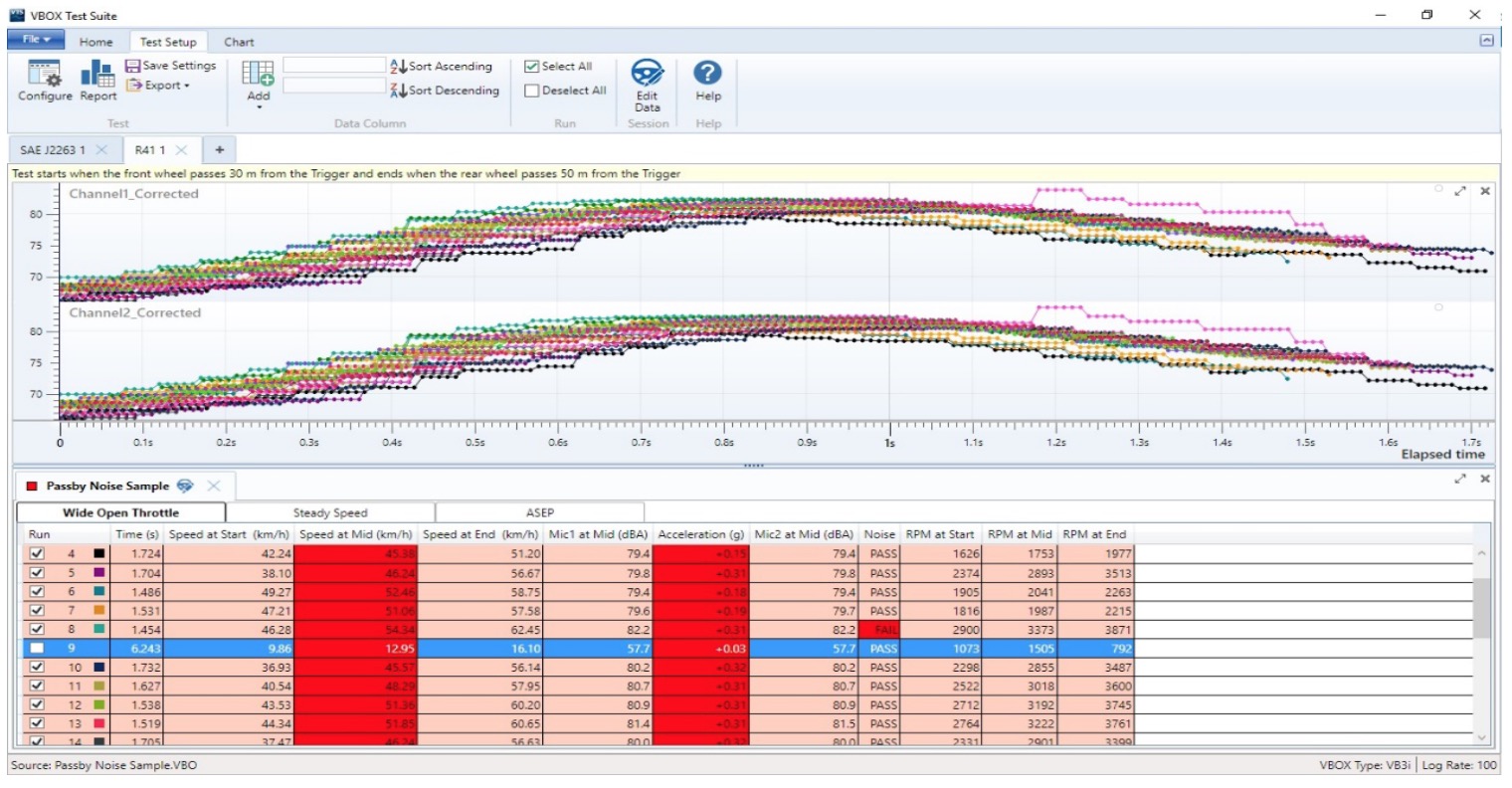

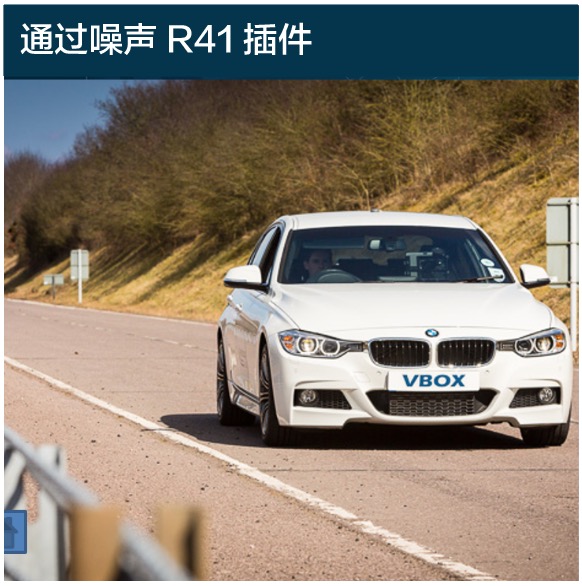

Passing Noise

Data provided:

1. Sound pressure level:

·Full throttle

·Stable speed

·ASEP

2. Speed & RPM:

·starting point

· Microphone position

·Test end point

3. The average speed across the test area;

4. Calculated reference acceleration, specific power specified in R41;

5. Pass/fail of test data and calculated values.

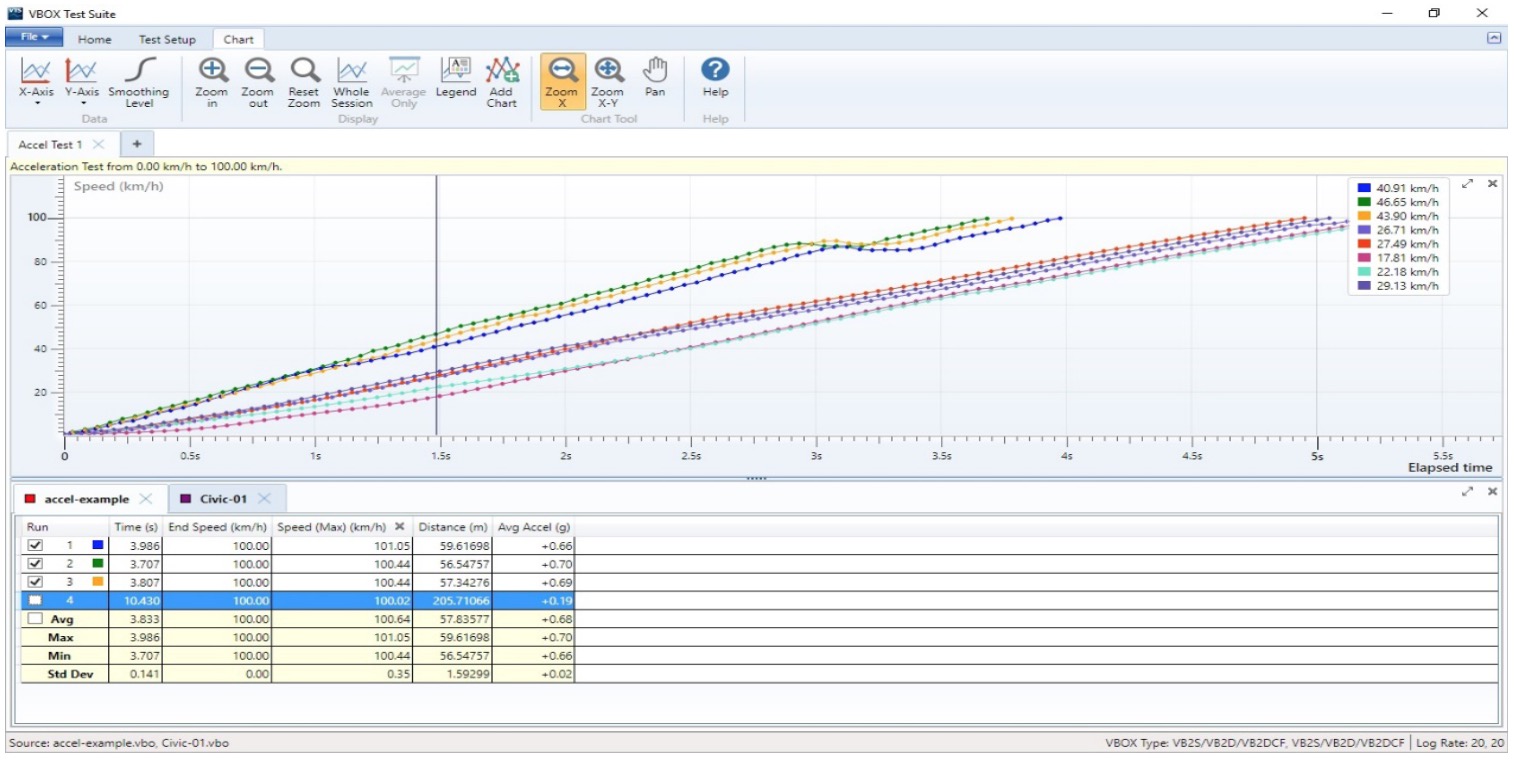

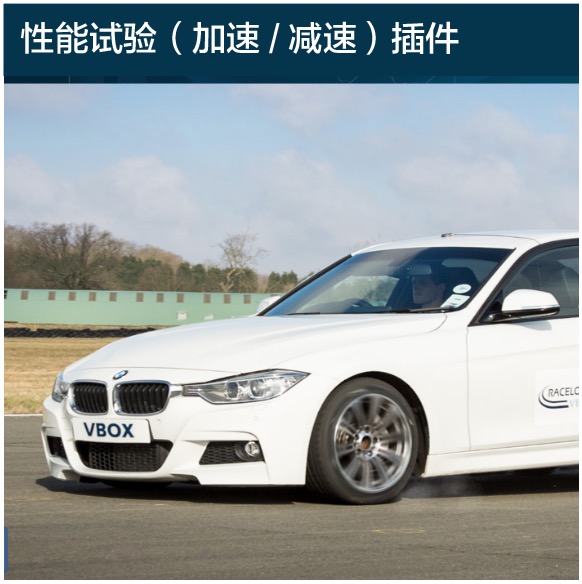

Performance test

Data provided:

1. Speed: start, end, average, minimum, maximum;

2. Distance;

3. Acceleration: start, end, average, minimum, maximum;

4. Any recorded channel: start, end, average, min, max.
